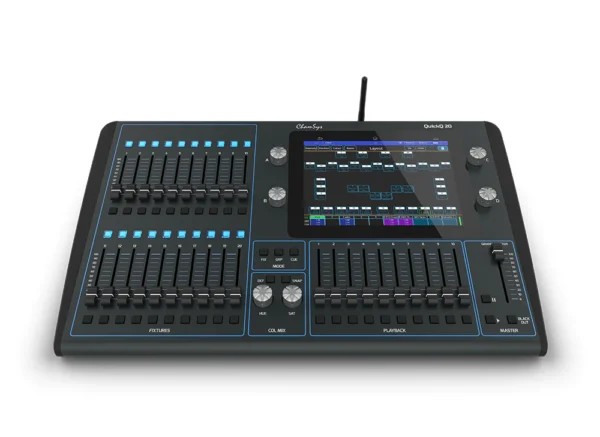

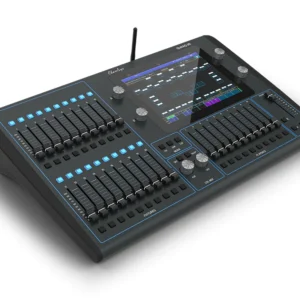

QuickQ 20 is part of ChamSys QuickQ range of user friendly and affordable lighting control consoles. The QuickQ 20 is the perfect choice console for control of dimmer, LED colour mixing and moving light fixtures. The console features a large 9.7 inch touch screen utilising a smart phone like interface for setup, programming and playback of your show.
The console can automatically detect and patch RDM compliant fixtures and features in-built WIFI capabilities enabling remote connection to the free QuickQ app available on iOS, Andoid and Windows tablets and phones. Easily connect the app by simply scanning the QR code on the console display.
The console has easy-to-understand buttons and faders, simple colour selection and intensity control tools, a large touch screen with zooming and scrolling at your fingertips, as well as a simple cue/chase system for playback. Specifically aimed at the novice user, the QuickQ interface easily leads you through setup, programming and operation of the console.
The console has a free to download offline programming software available for Mac and Windows. You can program your show on your computer, save it onto a flash drive and load it onto the QuickQ console.
QuickQ uses ChamSys extensive and continuously updated personality library with over 30,000 personalities.
QuickQ shows are compatible can be loaded onto any MagicQ system allowing future progression onto ChamSys more advanced MagicQ range of consoles.
Overview:
- Modelled on smartphone icon interfaces for ease of use
- Intuitive interface allowing simple control of all fixture attributes
- The interface supports gestures such pinch zoom and scrolling
- Easily connect to the remote app on iOS & Android devices via inbuilt Wi-Fi
Playback Faders:
- 20 multi-function fixture faders with 3 different modes – Fixture, Group and Cue
- 10 multi-cue Playback faders, which are legended on screen
- The console features a dedicated Grand Master fader for overall level control
Colour Control:
- A dedicated “colour control area” with Hue and Saturation encoders
- Select from inbuilt palettes and gel libraries using the touch screen
- Built in colour picker for use with LED fixtures
Networking:
- QuickQ supports output of DMX over network via ArtNet/sACN/Pathport
- Remote triggering of Playbacks and Execute items via OSC
Software:
- Offline editor available for both Windows and Mac
- Regular software updates
- Easy Upgrades
- Automated Patching
- HSV Color Mixing
- Color Picker
- Built-in FX
- Chase Support
- Master Cue Stack
- Execute Window
- Audio Triggering
- Tap to Time

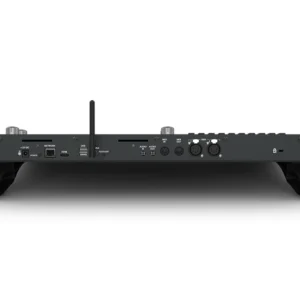

Hardware Specifications:
- Universes supported: 2
- Direct DMX Outputs 5-Pin XLR: 2
- Master Playback Faders: 10
- Multi-Function Fixture Faders: 20
- Bump Buttons: Yes
- Attribute Encoders: 4
- Dedicated Hue/Saturation Encoders: Yes
- Inbuilt 9.7” Multi-touch Display: Yes
- External Monitor: 1920 x 1080 HDMI
- Inbuilt Wi-Fi: Yes
- Network Port: 1
- USB Ports: 2
- Audio Input: 1
- Audio Output: 1*
- MIDI Ports in/out: Yes*
Software Specifications:
- Max Number of DMX Channels: 1024
- Max Number of Fixtures Supported: 1024
- Max Number of Cue Stacks: 10
- Max Number of Chases: 10
- Midi & Midi Timecode Supported: Yes
- OSC Supported: Yes
- RDM Autopatch for fast show patching
- Fixture library of over 30,000 fixture files
- Built in FX generator
- Colour picker and Gel inbuilt Gel library
- Offline designer software available for Windows and Mac
Console Weights and Dimensions:
- Width: 565mm (22.2 inches)
- Depth: 350mm (13.8 inches)
- Height: 106mm (4.2 inches)
- Weight: 5.2kg (11.46 lb)
Included Accessories:
- USB Desk light: 1
- Dust cover: 1
- Tablet stand: 1
- Wi-Fi Antenna: 1
- 12V power supply: 1
- IEC power cable: 1
Boxed Weights and Dimensions:
- Width: 720mm (28.3 inches)
- Depth: 420mm (16.5 inches)
- Height: 230mm (9 inches)
- Weight: 8kg (17.63 lb)
Flight Cased Weights and Dimensions:
- Width: 650mm (25.6 inches)
- Depth: 490mm (19.3 inches)
- Height: 210mm (8.3 inches)
- Weight (console in flightcase): 16kg (35.27 lb)
*Audio Out & Midi Out enabled via future software update
