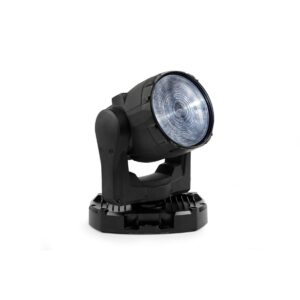

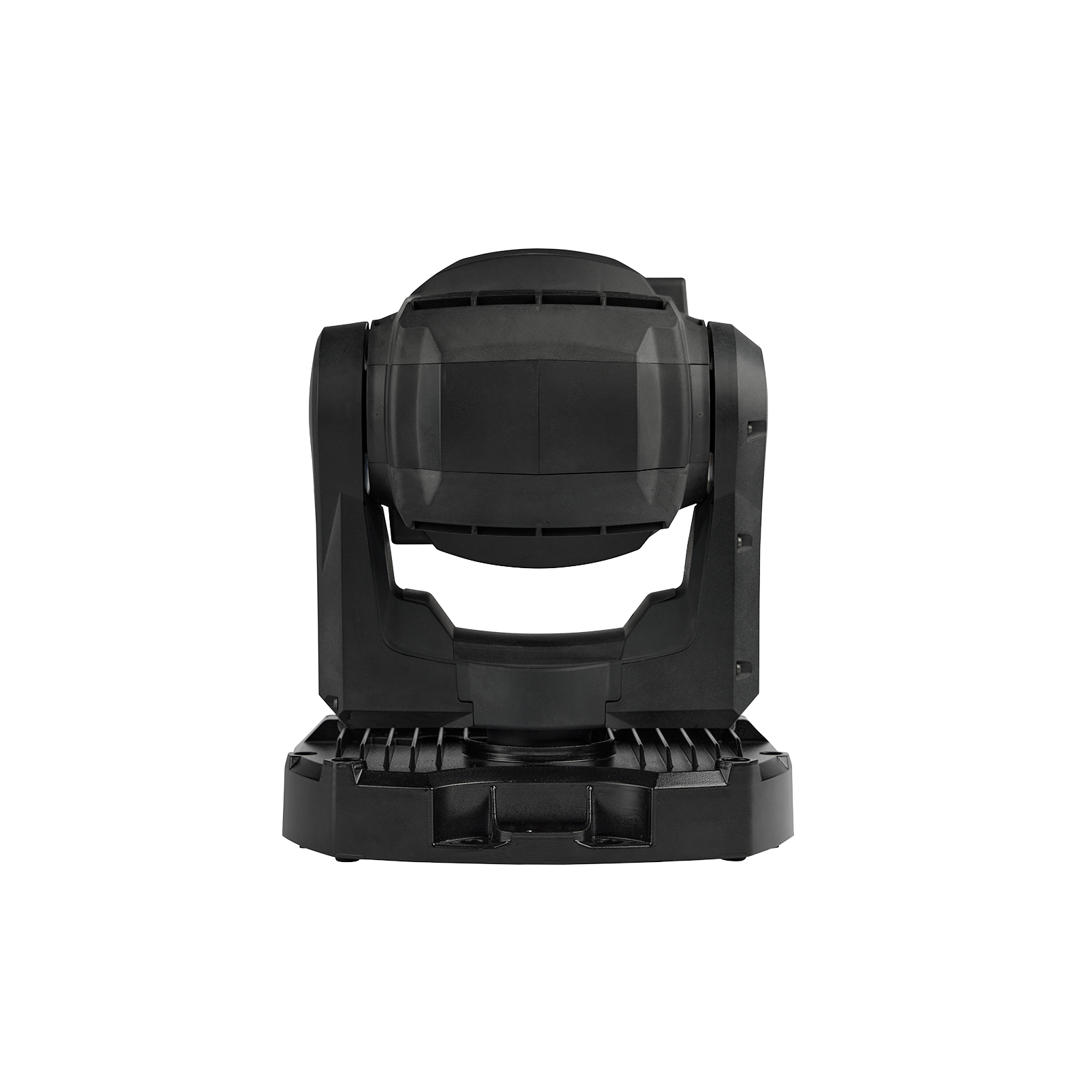

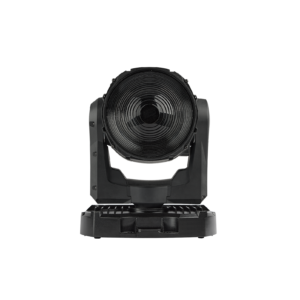

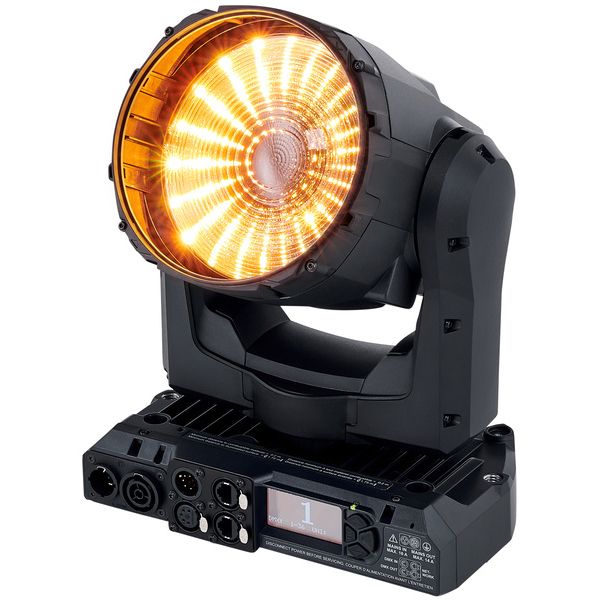

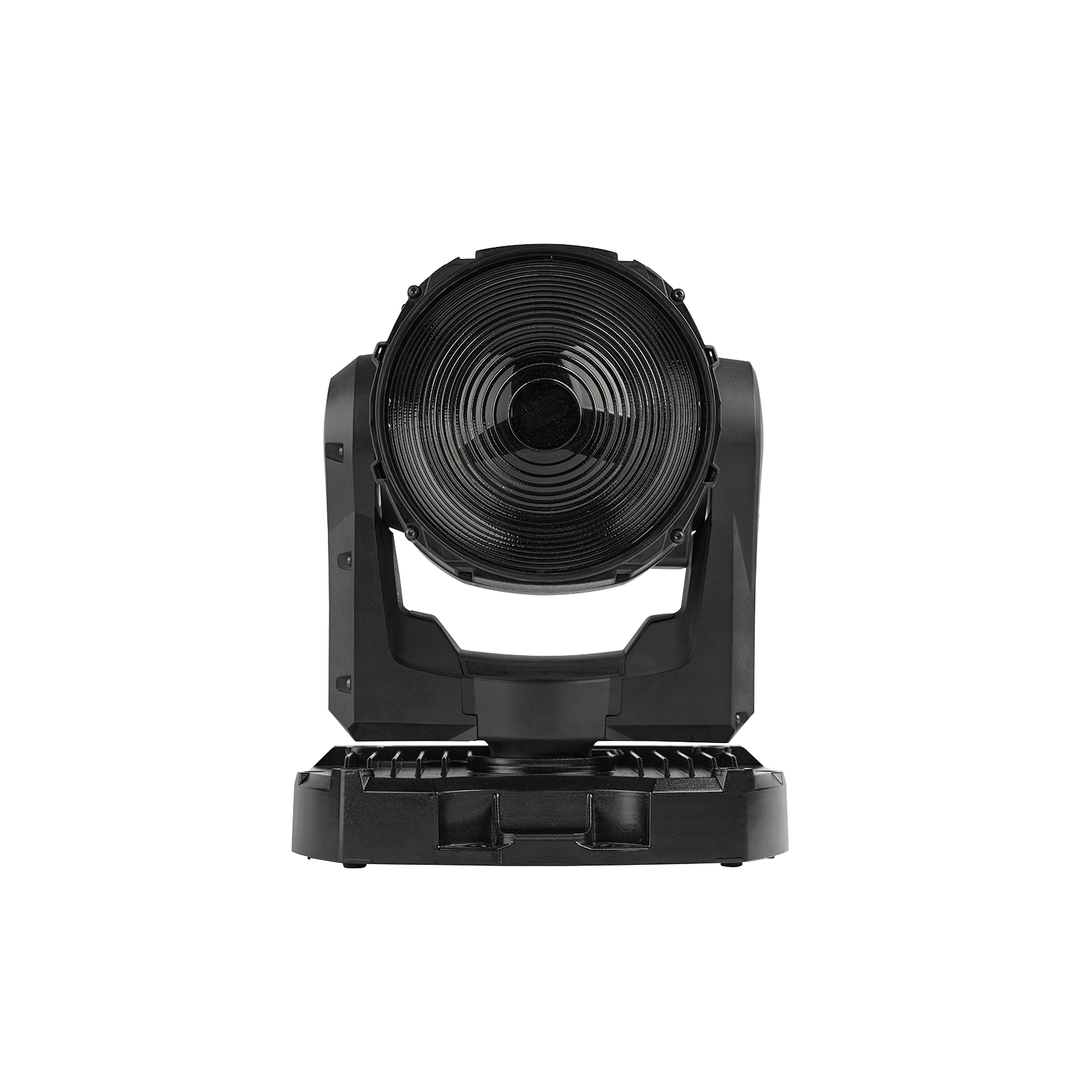

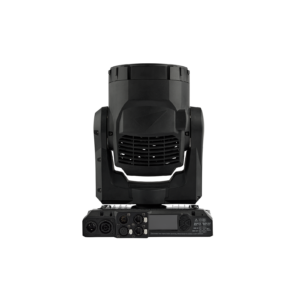

Martin MAC ONE movinghead

Martin Mac ONE Beam, is zeer compacte en lichtgewicht beam / wash movinghead met een een hoge lichtopbrengst en is zeer snel in zijn pan en tilt bewegingen.

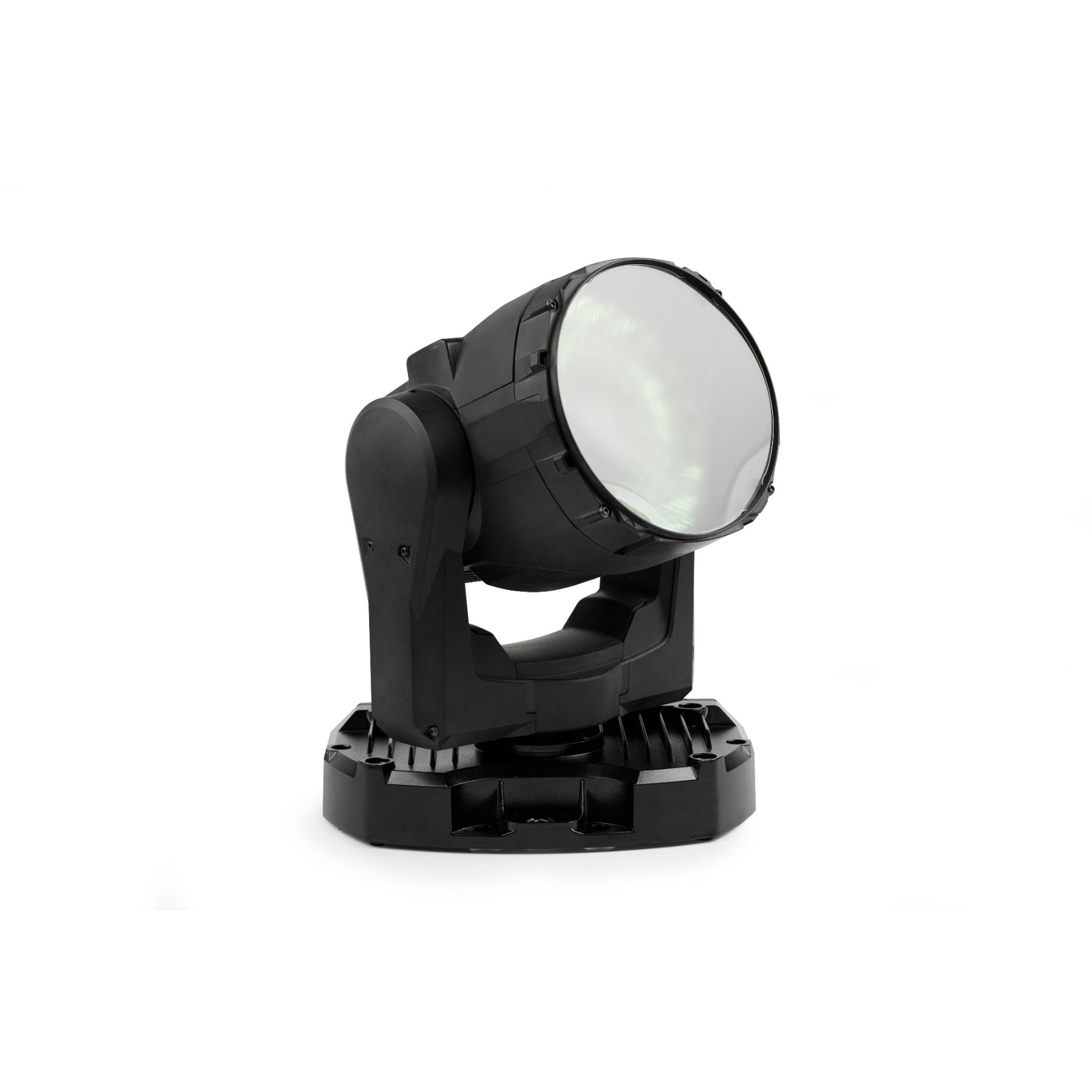

Martin Mac ONE Beam heeft een extra (losse) lens met een wash effect die eenvoudig en snel gemonteerd (erin vouwen) kan worden in de lenskap.

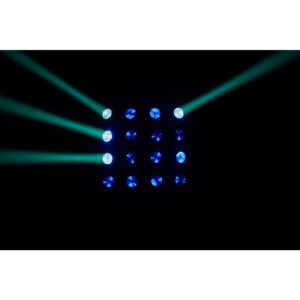

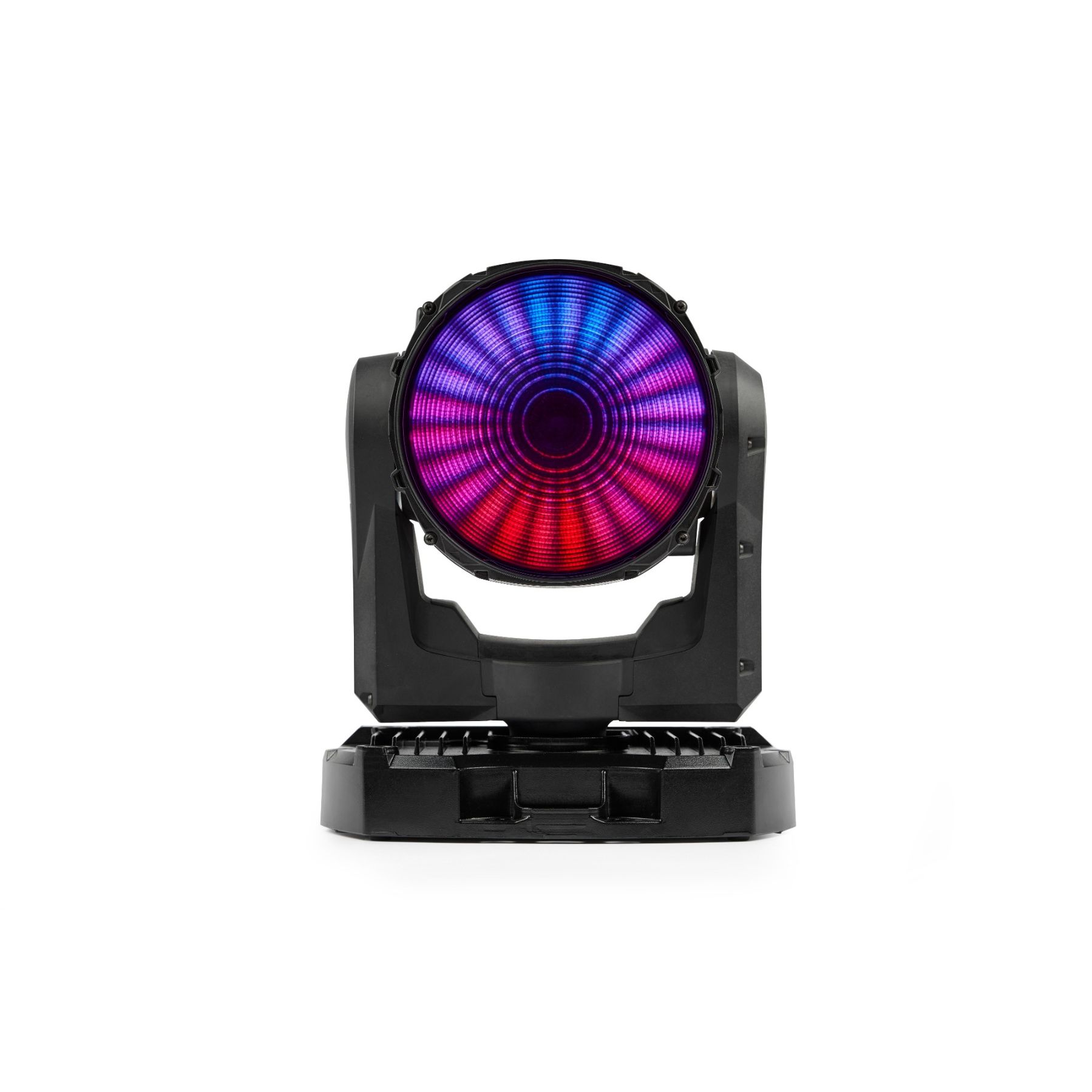

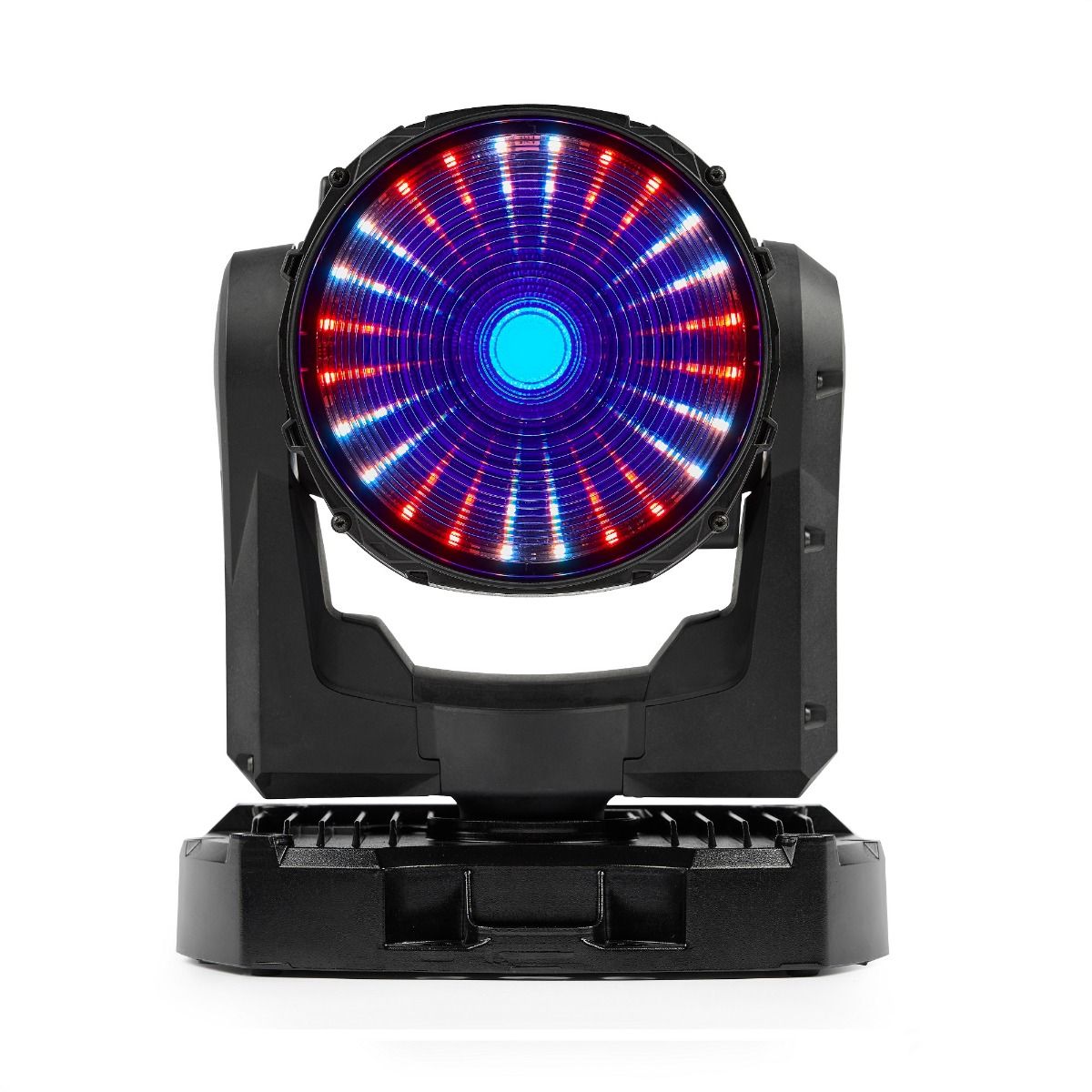

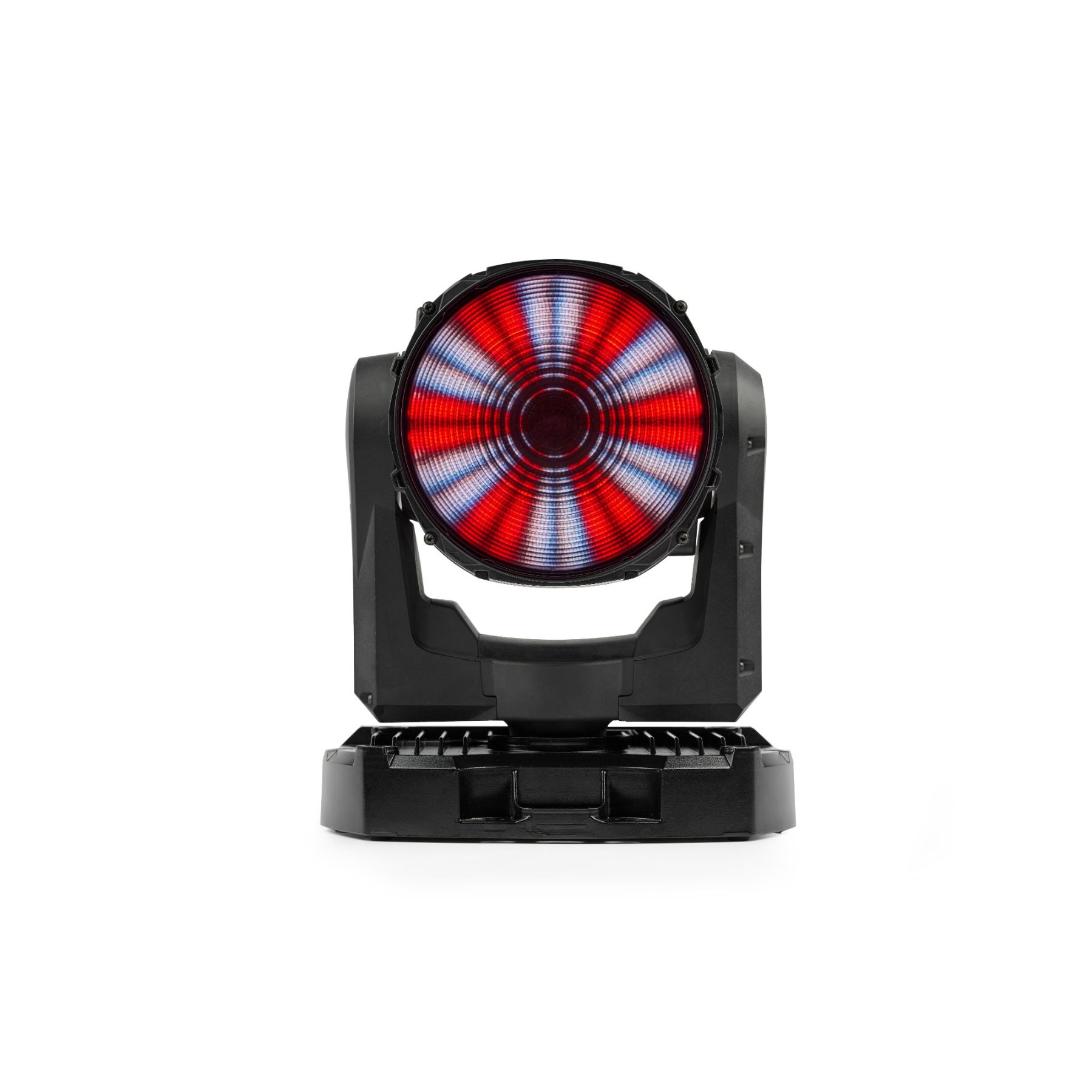

Martin Mac ONE Beam heeft 24 RGB background effect LEDs waarmee diverse lichteffecten gecreëerd kunnen worden, deze effecten kunnen gecombineerd worden met de beam.
Martin Mac ONE Beam heeft RGBL LEDs waarmee alle kleuren gemaakt kunnen worden.
Martin Mac ONE Beam heeft een 540° pan en 240° tilt.
Martin Mac ONE Beam heeft een zoom van 4 – 27  graden.
Martin Mac ONE Beam word aangestuurd via DMX, RDM, Art-Net, RDM over Art-Net, sACN en P3
Martin Mac ONE Beam word geleverd met ophanghaken voor montage in truss.

PHYSICAL

• Width (across yoke): 226 mm (8.90 in.)
• Width (base): 254 mm (10.00 in.)
• Height (head straight up): 336 mm (13.23 in.)
• Height (maximum): 349 mm (13.74 in.)
• Depth (head): 220 mm (8.66 in.)
• Depth (base): 177 mm (6.97 in.)
• Minimum center-to-center distance in side-by-side installation: 300 mm (11.81 in.)
• Weight: 4.40 kg (9.70 lbs.)

DYNAMIC EFFECTS

• Beam Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
• Beam Dimming options: Choice of four dimming curves
• Beam Color Mixing: RGB, independently variable 0 – 100%
• Beam Color Temperature Control: Variable 1,000 – 12,850 K
• Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
• Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
• Zoom: Motorized with 1:5 zoom ratio, including zoom pulse effect
• Pan: Motorized 540°
• Tilt: Motorized 240°
• Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
• Backlight Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
• Backlight Dimming options: Choice of four dimming curves
• Backlight Color Mixing: RGB, independently variable 0 – 100%
• Backlight Color Temperature Control: Variable 1,000 – 12,850 K
• Backlight Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
• Backlight Virtual Color wheel: 48 color presets, continuous rotation & random color
• Backlight PixelMapping: Individual RGB control of each of the 24 Backlight pixels
• Backlight P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
• Pre-programmed effects: Two ranges of FX on Beam, Backlight or Combination; independent or synchronized/combined
• LED Frequency control: Variable LED PWM control

CONTROL AND PROGRAMMING

• Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
• Protocol Detection: Automatic
• DMX Modes: Compact, Basic, Ludicrous & Compact Direct
• DMX Channels: 20, 36, 108 & 20
• 16-bit Controllable Parameters: Beam & Backlight Dimming, Beam Color Mixing, Zoom, Pan and Tilt
• Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
• Local User Interface: Backlit LCD Display with battery-powered operation
• Fixture identification: User-settable ID number
• DMX Compliance: USITT DMX512-A
• RDM Compliance: ANSI/ESTA E1.20
• Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
• sACN Compliance: ANSI E1.31 – 2016
• Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
• DMX/RDM Transceiver: Galvanic-isolated RS-485
• Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
• Firmware Update: via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller

OPTICS

• Front Lens Diameter: 150 mm (5.91 in.)
• Zoom Range: 1:5
• Full Zoom Range at Half Peak (Beam Angle): 4.0° – 21.0°
• Full Zoom Range at Tenth Peak (Field Angle): 6.0° – 27.0°
• Beam Light Source: 1 x 120 W RGBL LED
• Backlight Light Source: 24 x 0.25 W RGB LED
• Max. Total Beam LED Engine Power: 120 W
• Max. Total Backlight LED Engine Power: 6 W

PHOTOMETRIC DATA

• Light Engine Luminous Output: 5,680 lumens
• Fixture Luminous Output Wide: 2,400 lumens
• Fixture Luminous Output Narrow: 1,800 lumens
• Peak Luminous Intensity Narrow: 300,000 cd
• CCT: Variable 1,000 K – 12,850 K (+/- 200 K)
• CRI (Color Rendering Index) high output mode: ≥ 77
• CRI (Color Rendering Index) high quality mode: ≥ 83
• CQS (Color Quality Scale) high output mode: ≥ 87
• CQS (Color Quality Scale) high quality mode: ≥ 90
• TM-30 Rf (IES TM-30-15 Fidelity Index) high output mode: ≥ 81
• TM-30 Rf (IES TM-30-15 Fidelity Index) high quality mode: ≥ 84
• TM-30 Rg (IES TM-30-15 Gamut Index) high output mode: ≥ 114
• TM-30 Rg (IES TM-30-15 Gamut Index) high quality mode: ≥ 110
• TLCI (Television Lighting Consistency Index) high output mode: ≥ 70
• TLCI (Television Lighting Consistency Index) high quality mode: ≥ 84
• Beam LED Refresh Rate: 2,400 Hz with adjustment (+/- 2%) via DMX
• Backlight LED Refresh Rate: 1,200 Hz
• Binning: Tight color and flux binning
• Calibration: Full Gamut Color Calibration of Beam and Backlight
• Color Modes: Extended Color Mode and Calibrated Color Mode
  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient

CONSTRUCTION

• Housing: High-impact flame-retardant thermoplastic
• Color: Black
• Protection rating: IP20

INSTALLATION

• Mounting options: clamps on fixture, omega on fixture, fourbar or grid mount ring
• Mounting points on Fixture: 1 pair of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega bracket and two M12 threaded holes
• Mounting points on Fourbar: 1 fixed and 2 repositionable M12 threaded holes
• Mounting points on Grid Mount Ring: 6 receivers for VDO Couplers (compatible with VDO Atomic Bold/Dot)
• Mounting points on VDO Coupler Header: 2 repositionable M12 threaded holes and 4 receivers for VDO Couplers (compatible with Grid Mount Ring and VDO Atomic Bold/Dot)
• Maximum vertical column height in Grid Mount Rings: 6 fixtures
• Minimum distance to combustible materials: 0.20 m (7.87 in.)
• Minimum distance to illuminated surfaces: 1.75 m (68.90 in.)

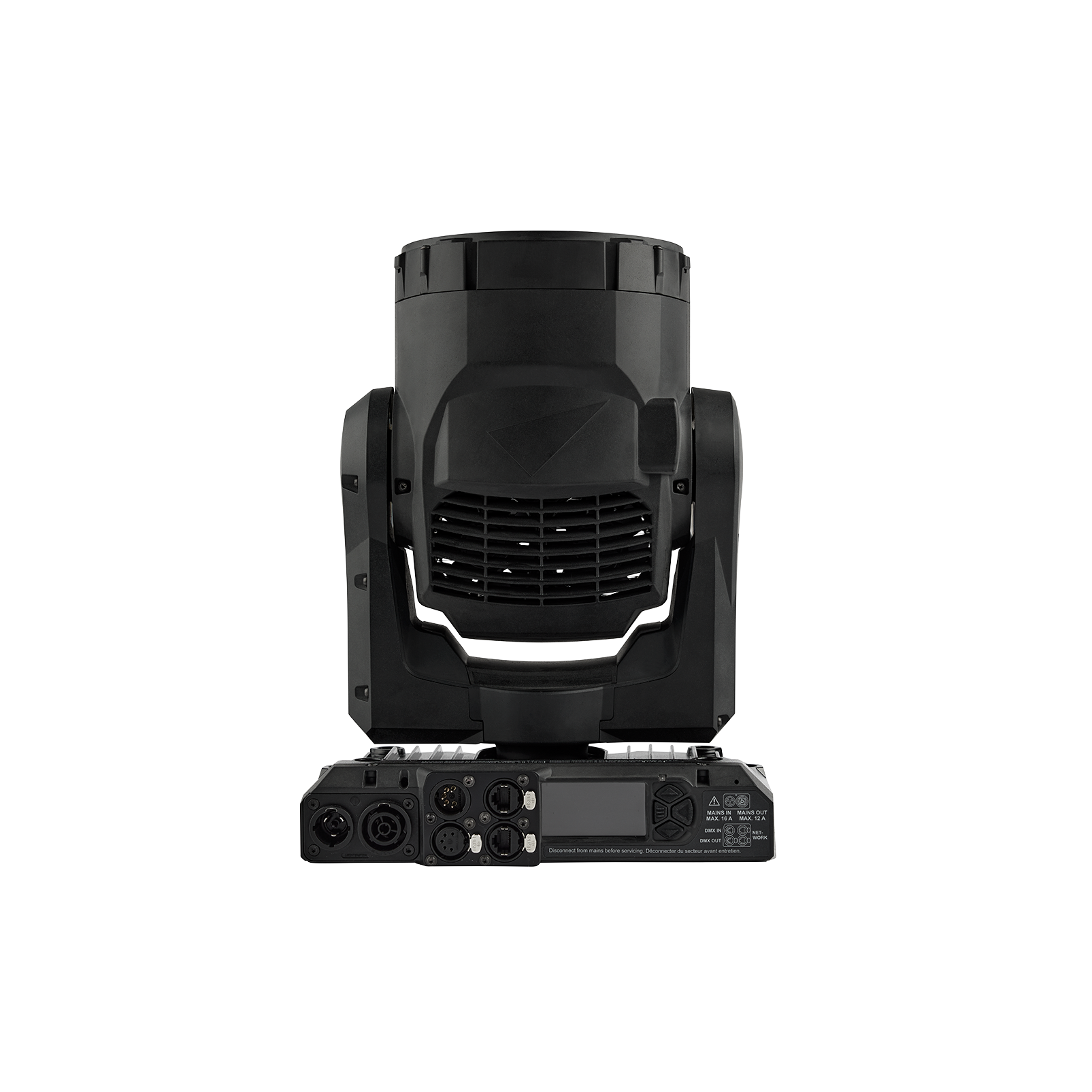

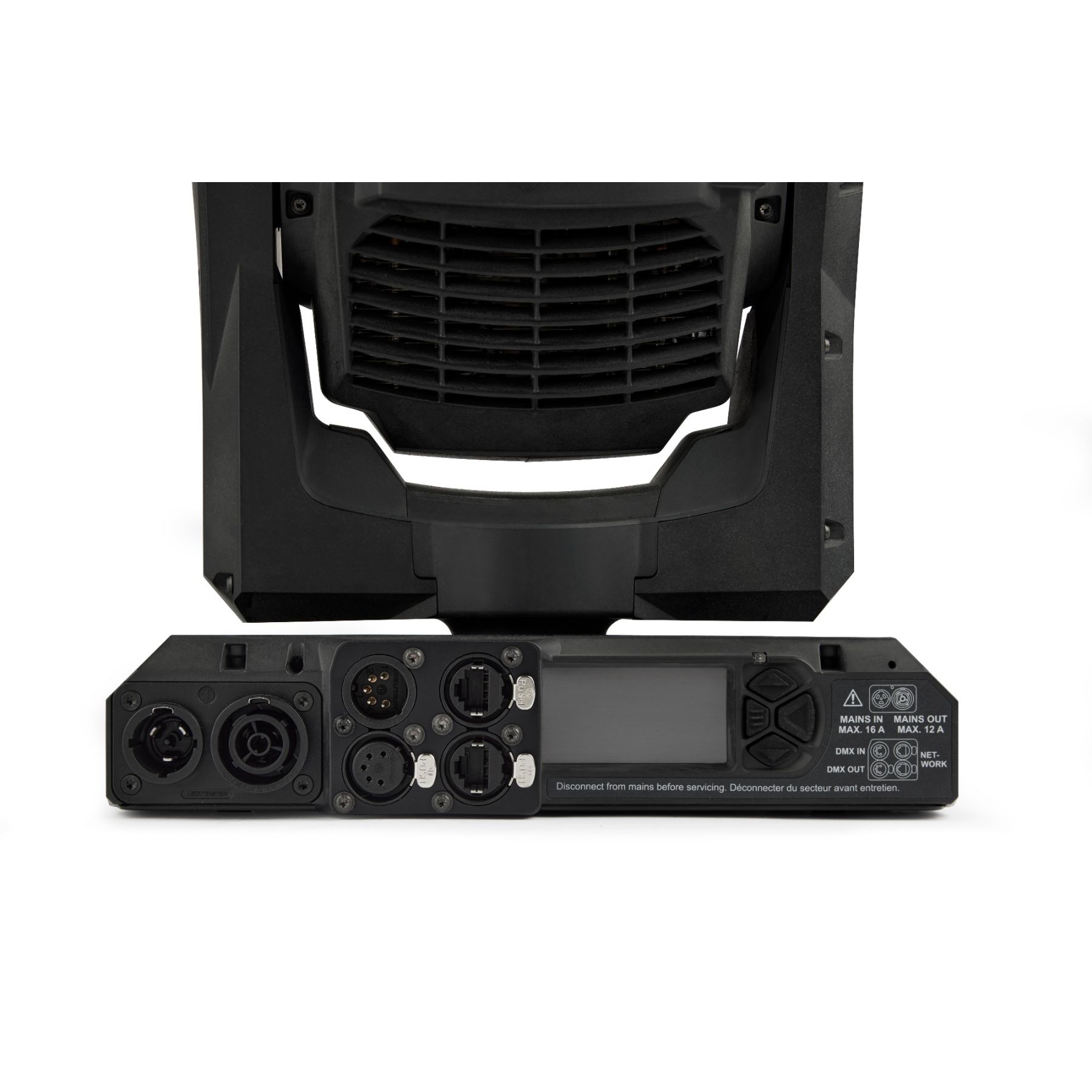

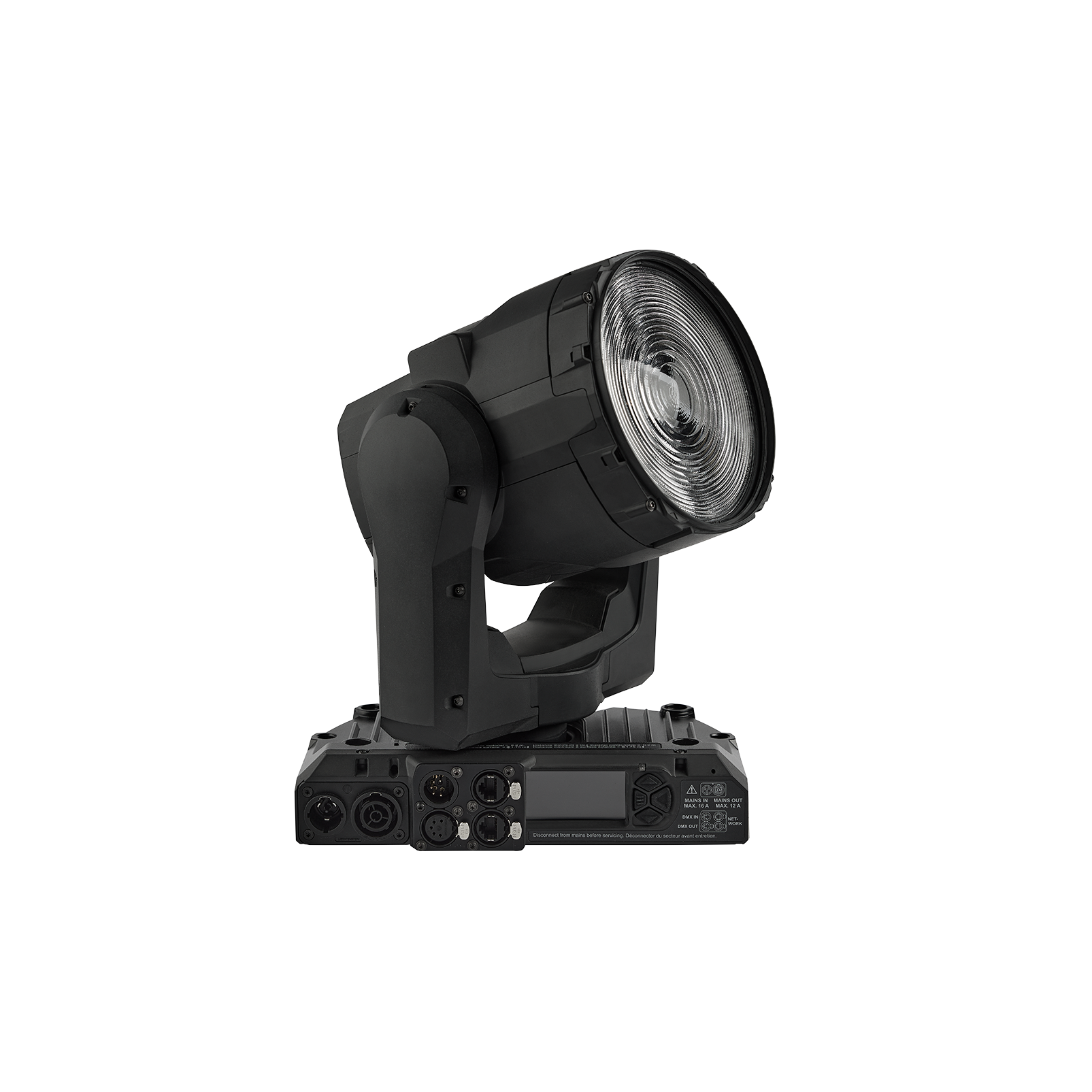

CONNECTIONS

• AC mains power in/thru: Neutrik powerCON TRUE1 TOP
• DMX and RDM data in/thru: Neutrik 5-pin locking XLR
• Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON

ELECTRICAL

• AC power: 100-240 V AC nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode
• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 3.5 A
• Typical earth-leakage current: 0.05 mA
• Power Factor: 0.99 @ 100V , 0.98 @ 120V , 0.94 @ 208V , 0.92 @ 230V , 0.88 @ 240V
• Max current draw: 2.0 A @ 100V / 120V, 0.9 A @ 208V / 230V / 240V
• Typical current draw: 1.6 A @ 100 V , 1.4 A @ 120 V , 0.9 A @ 208 V , 0.8 A @ 230 V , 0.8 A @ 240 V *

Power Consumption

• Maximum: 180 W
• Typical: 160 W *
• Idle: 24 W *
• Hibernation: 9 W *
  * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  Typical: full output white, no effects moving, regulated fan speed.
  Idle: no output, no effects moving, regulated fan speed.
  Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

THERMAL

• Cooling: Forced air (temperature regulated, low noise, user-definable levels)
• Total heat dissipation (calculated, +/- 10%): 546 BTU/hr.
• Maximum surface temperature, steady state, at 40° C ambient: 55° C (131° F)
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): 5° C (41° F)

ACOUSTIC DATA

• Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 26.3 dB(A)
• Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 23.0 dB(A)

INCLUDED ITEMS

• Single omega bracket with 1/4 turn fasteners for rigging clamp attachment
• SoftLens
