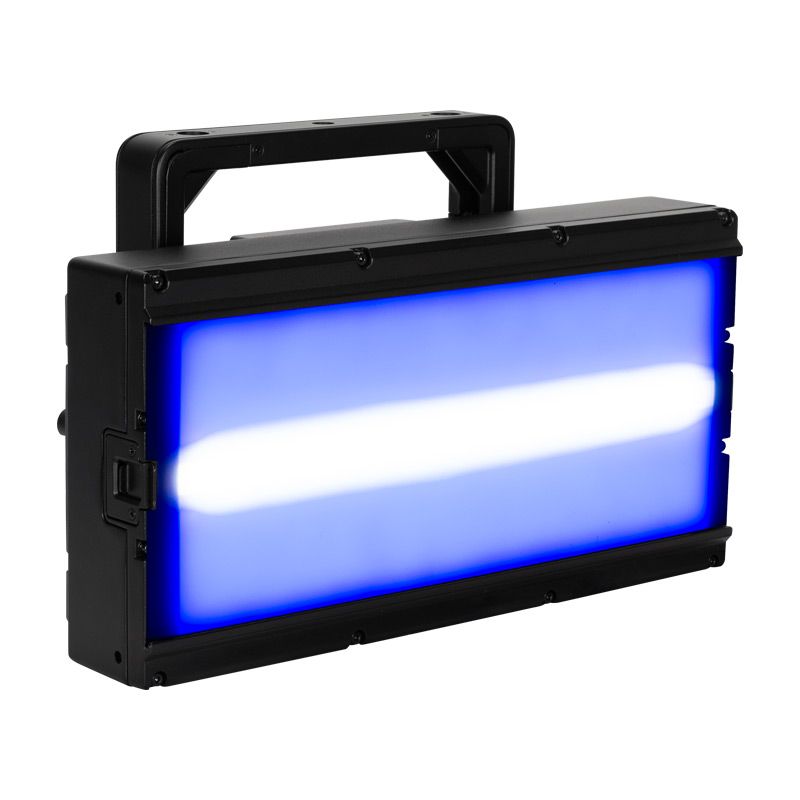

ADJ Jolt Panel FX Stroboscoop geeft zeer felle witte flitsen en is vergelijkbaar met de bekende flitsbuis stroboscopen.
ADJ Jolt Panel FX Stroboscoop verbruikt in totaal 330W maximaal op vol vermogen.

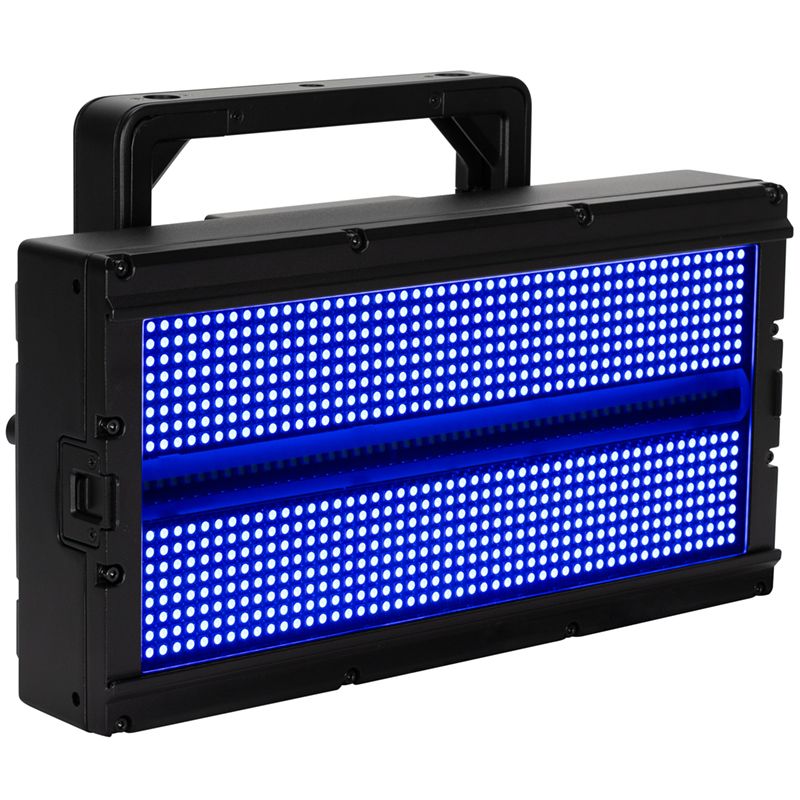

ADJ Jolt Panel FX Stroboscoop heeft 48 witte leds verdeeld in 6 segmenten,

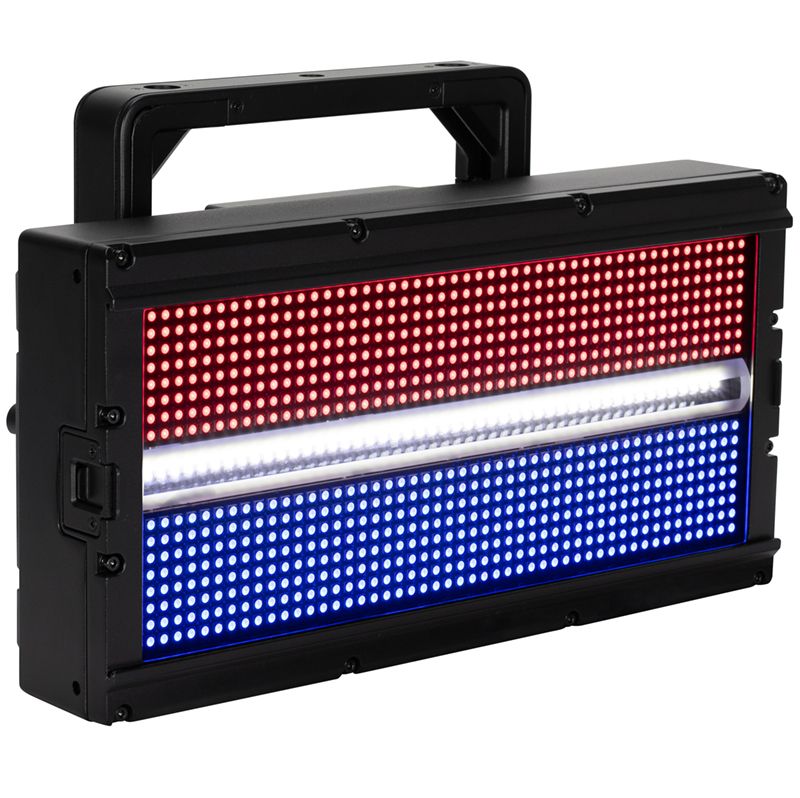

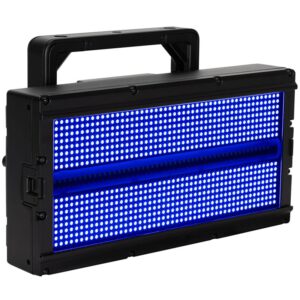

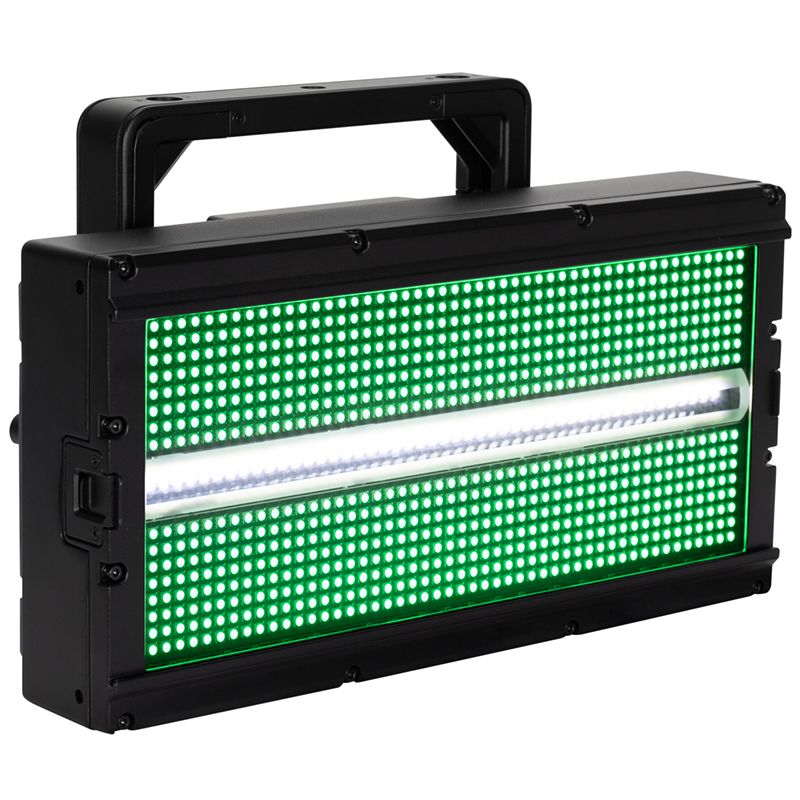

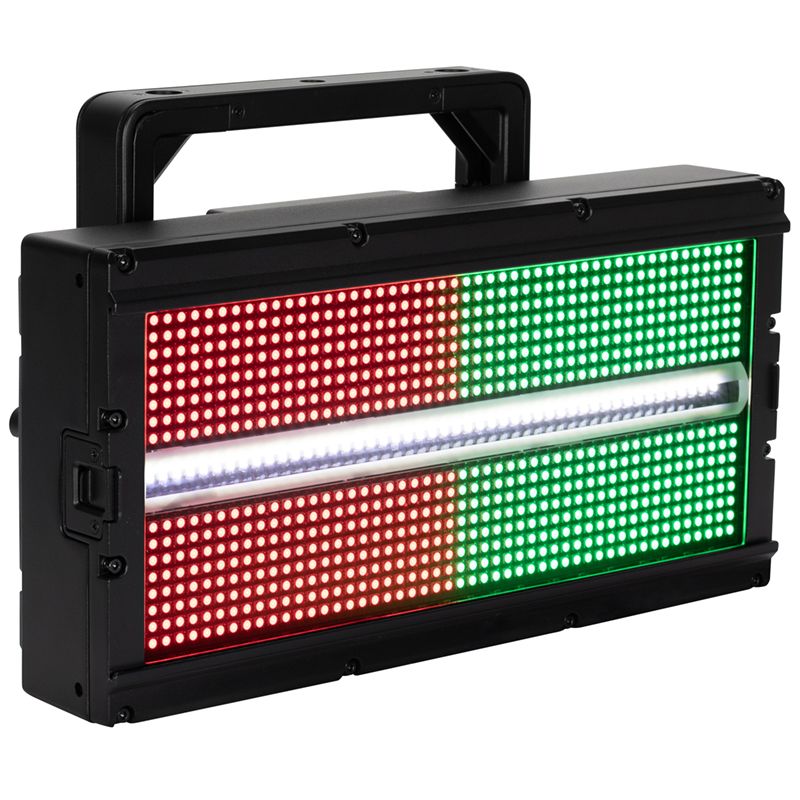

ADJ Jolt Panel FX Stroboscoop heeft 800 RGB leds verdeeld in 40 segmenten en daardoor zijn diverse loopjes en combinaties mogelijk.

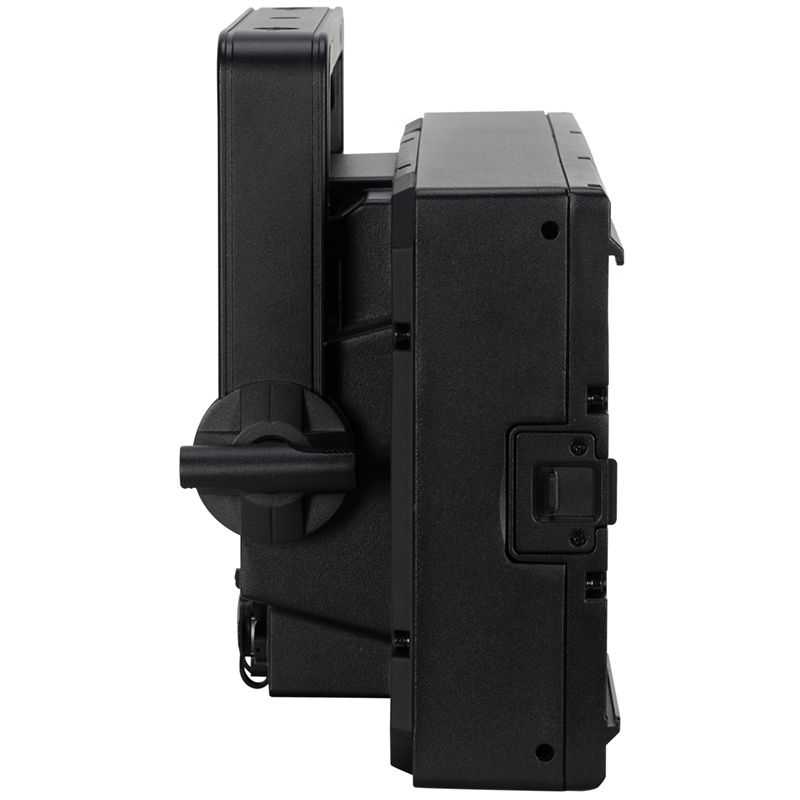

ADJ Jolt Panel FX Stroboscoop wordt geleverd met ophanghaken voor eenvoudige montage in truss.

Light Source:

• 800 x 0.5-Watt RGB SMD LEDs + 48 x 5-Watt Cool White SMD LEDs

• 73° Beam Angle

• 111° Field Angle

• Color LEDs Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White LED: 6900-7400K Color Temperature

• CRI: 69.4

• 50,000 Hour Average LED Life

Features:

• 40 x RGB LED Zones

• 6 x Cool White LED Zones

• 25 Built-in RGB LED Program Macros

• 9 Built-in Cool White LED Program Macros

• IP65-Rated for temporary outdoor and indoor use

• Aria X2 Wireless DMX Built-in

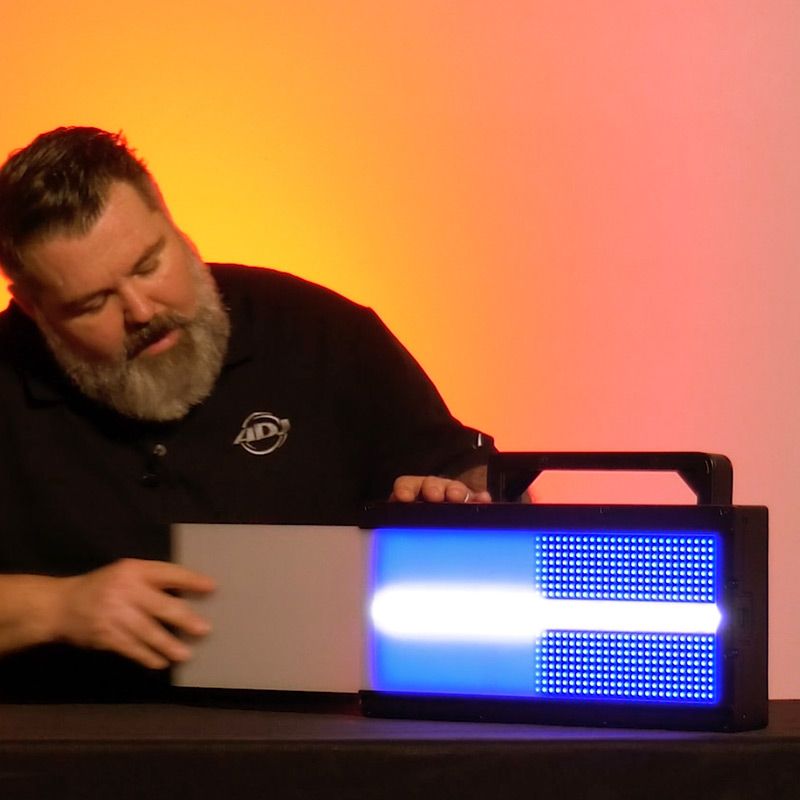

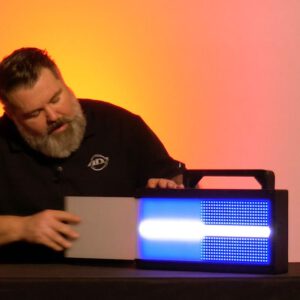

• Channel for Light Shaping Filters (to Blur Pixel Dots)

• End Cap Locking Mechanism and Connecting Plat (for seamless fixture linking)

• Built-in Holes to Connect an Omega Bracket (sold separately)

Control:

• Control Protocols: DMX, WiFLY, Aria X2 and RDM

• 10 DMX Channel Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126 and 141 channel modes

• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law & S Curve)

• 0-100% Smooth Dimming

• Strobe, Shutter & Pulse Control

• Max Strobe Rate 20Hz; Min Strobe Rate: 1Hz.

• Refresh Rate: 900Hz – 25kHz.

• With Wired Digital Communication Network

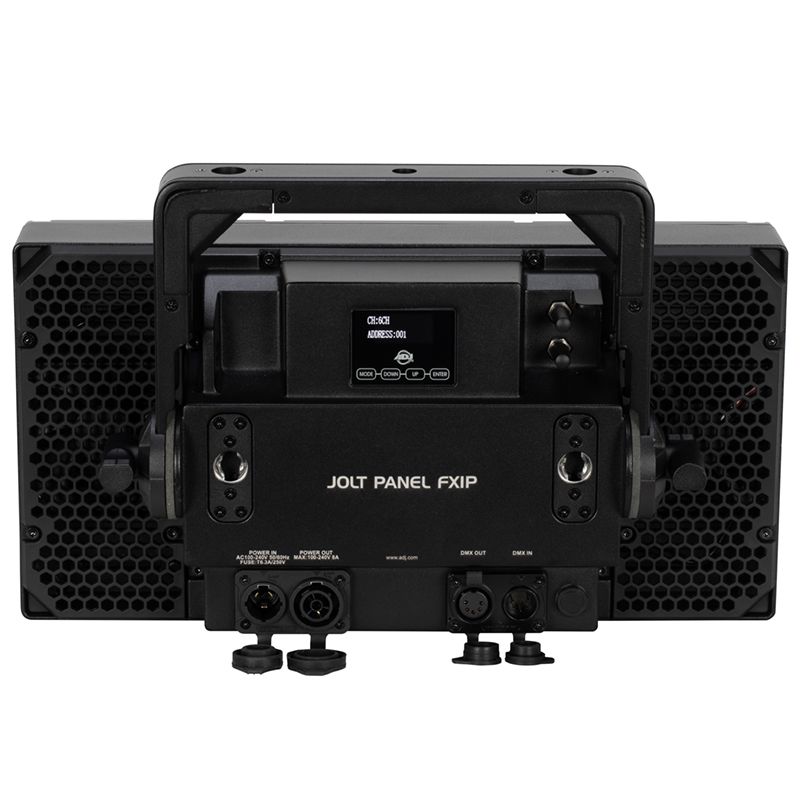

• Display: OLED Display with 4-Button Touch Menu

Connections:

• Data: IP65-rated Outdoor Locking 5-pin DMX In/Out

• Power: IP65-rated Outdoor Locking Power In/Out

Electrical:

• 100-240V 50Hz/60Hz (Auto Sensing)

• Max Power Consumption: 214W @120V; 208W @230V

• Max Power Link: 6pcs @120V; 12pcs @230V

• Fuse Protected: T5A/250V Glass Fuse (5*20MM)

Dimensions / Weight:

• Length: 6.06″ (153.8mm)

• Width: 16.42” (417mm)

• Height: 10.38” (263.5mm)

• Weight: 13.67 lbs. (6.2kg)

Approvals and Ratings:

• CE

• cETLus Approved (Control # 4010765)

• IP65

Gewicht	6,2 kg
Aansluitingen	DMX 5-polig (input), DMX 5-polig (output), PowerCON TRUE1 (input), PowerCON TRUE1 (output)
Afmetingen	153.8 x 417 x 263.5 mm
DMX kanalen	6, 9, 13, 18, 36, 41, 51, 81, 126, 141
IP Rating	IP65
Kleuren	RGB, Wit
Lamp type	LED
Stroomverbruik	208 WATT
